Airtable

You can easily transfer all data from Airtable to your web app's database on DrapCode without coding. You just have follow the following steps:

Select the Spreadsheet/Case​

#1: Open the Spreadsheet on Airtable​

Login to your Airtable account and open the spreadsheet whose data you want to transfer to your DrapCode’s database.

DrapCode Builder Airtable

#2: Update Data, If Needed​

Make changes to your data if you want. If not then open your web app project on DrapCode Builder.

DrapCode Builder Airtable

Create Airtable Data Source​

#3: Go to the Builder & Open the Data Source Page​

Go to the “Set up” icon on the builder console and click on “Data Source''. You will be redirected to the data source page.

DrapCode Builder Airtable

#4: Create a Airtable Data Source​

Now, select the Airtable tab and click on the “Create” button.

DrapCode Builder Airtable

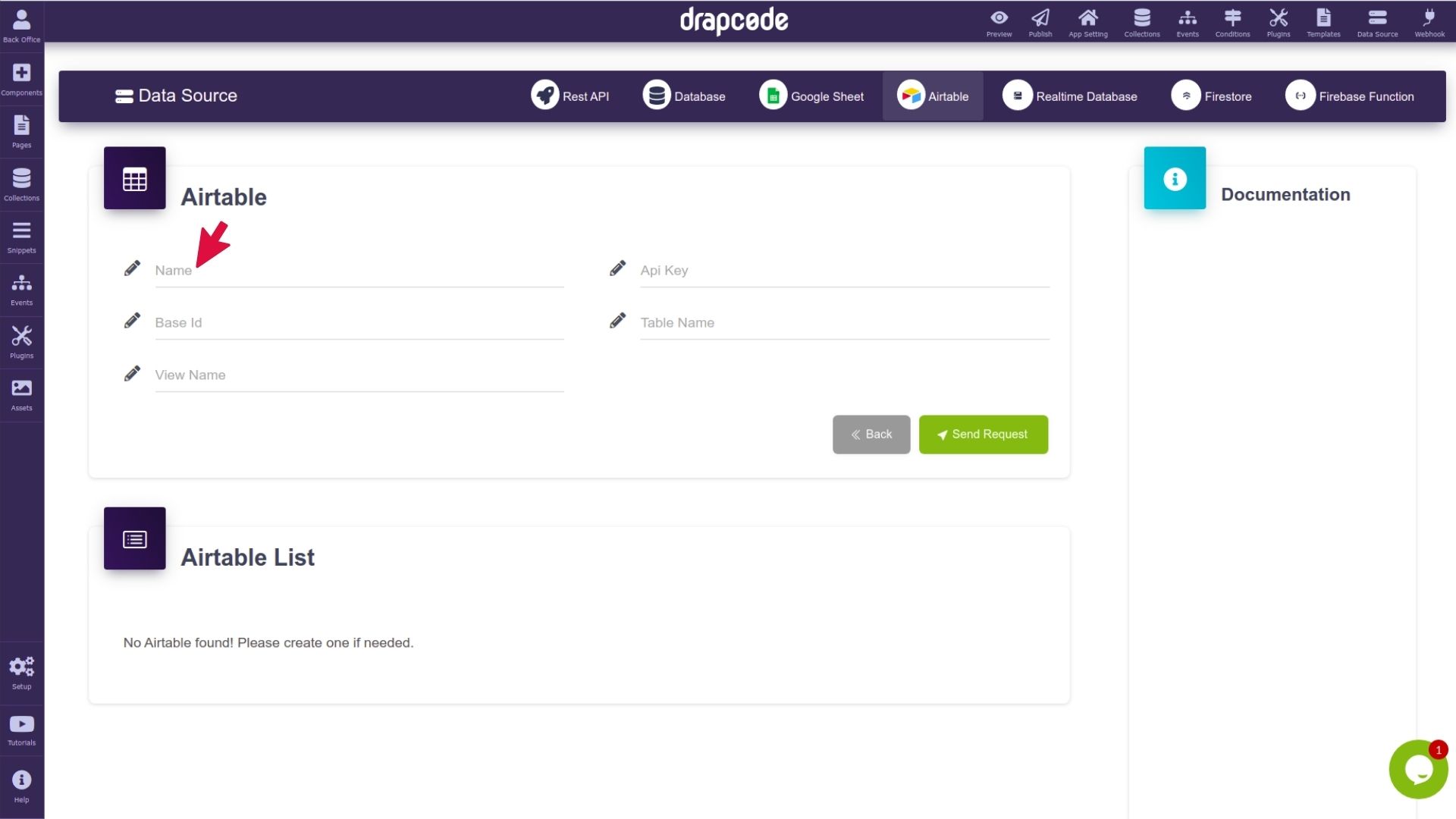

#5: Fill the Name Field​

Name the file/entry and start filling other fields as well one by one.

DrapCode Builder Airtable

Generate the API Key​

#6: Open the Airtable Account Settings​

Now go to your Airtable account and open your account details. Scroll down and click on the “Generate API Key” button.

DrapCode Builder Airtable

#7: Copy the Generated Key​

As you click the button, an API key will be generated automatically. You just have to copy it.

DrapCode Builder Airtable

#8: Paste the Copied Key​

Go to the Airtable data source page on the builder console and paste the copied key in the field marked for API Key, as shown below in the image.

DrapCode Builder Airtable

Get the Base ID​

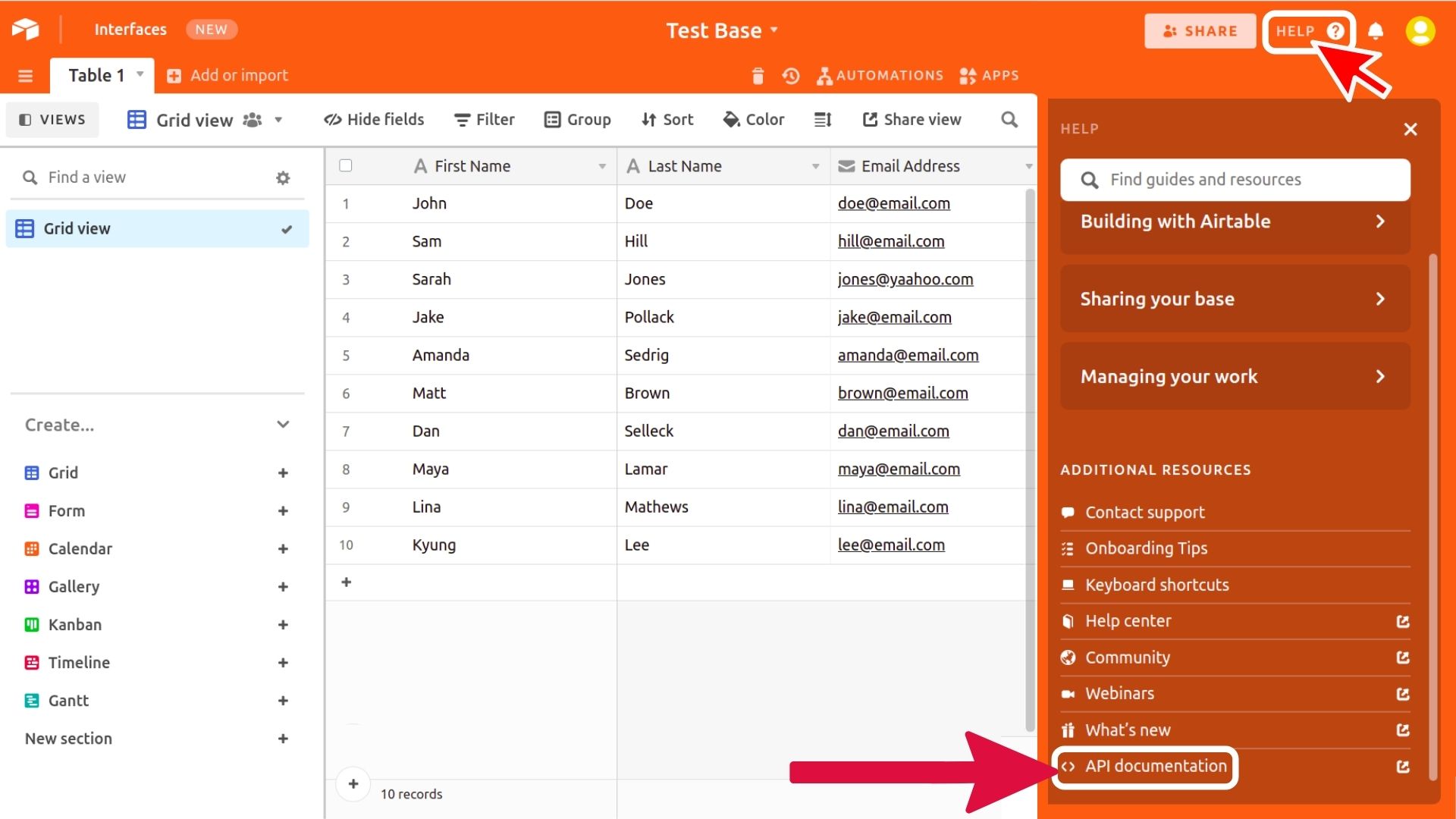

#9: Open the API Documentation Page​

Go back to your Airtable account and open the spreadsheet/case whose data you want to transfer. Then click the “HELP” button in the header. It will open a sidebar. Here, click on “API documentation” under Additional Resources.

DrapCode Builder Airtable

#10: Copy the Base ID​

Now, copy the ID of the base as shown in the image below.

DrapCode Builder Airtable

#11: Paste the Base ID​

Go to the Airtable data source page on the builder and paste the copied ID in the field marked for Base ID.

DrapCode Builder Airtable

Get the Table Name​

#12: Copy the Table Name​

Go back to the Airtable Spreadsheet and copy the name of the table whose data you want to transfer.

DrapCode Builder Airtable

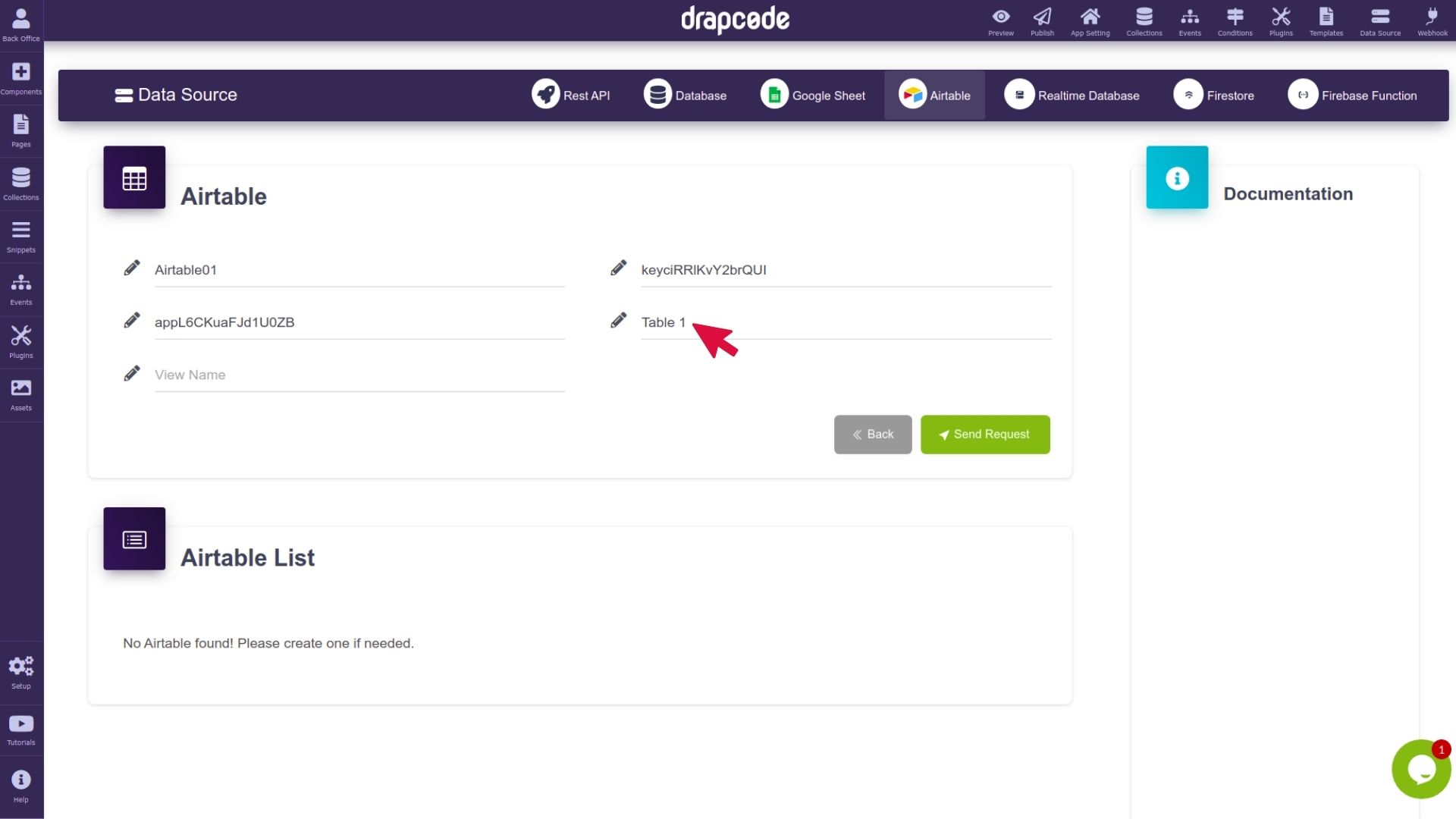

#13: Paste the Copied Name​

Go to the Airtable data source page on the builder and paste the copied name in the field marked as Table Name.

DrapCode Builder Airtable

Get the View Name​

#14: Copy the View Name​

Go to the Airtable Spreadsheet and edit the view name, for example “All Projects” as shown in the image below and copy the name.

DrapCode Builder Airtable

#15: Paste the Copied View Name​

Go to the Airtable data source page on the builder and paste the copied name in the field marked as View Name. Once all fields are filled, click the “Send Request” button.

DrapCode Builder Airtable

#16: Click Map Data to Collection Button​

As you click the button, the data transfer will begin as shown in the image below. Now, just click the “Map Data to Collection” button and scroll down.

DrapCode Builder Airtable

Map the Fields​

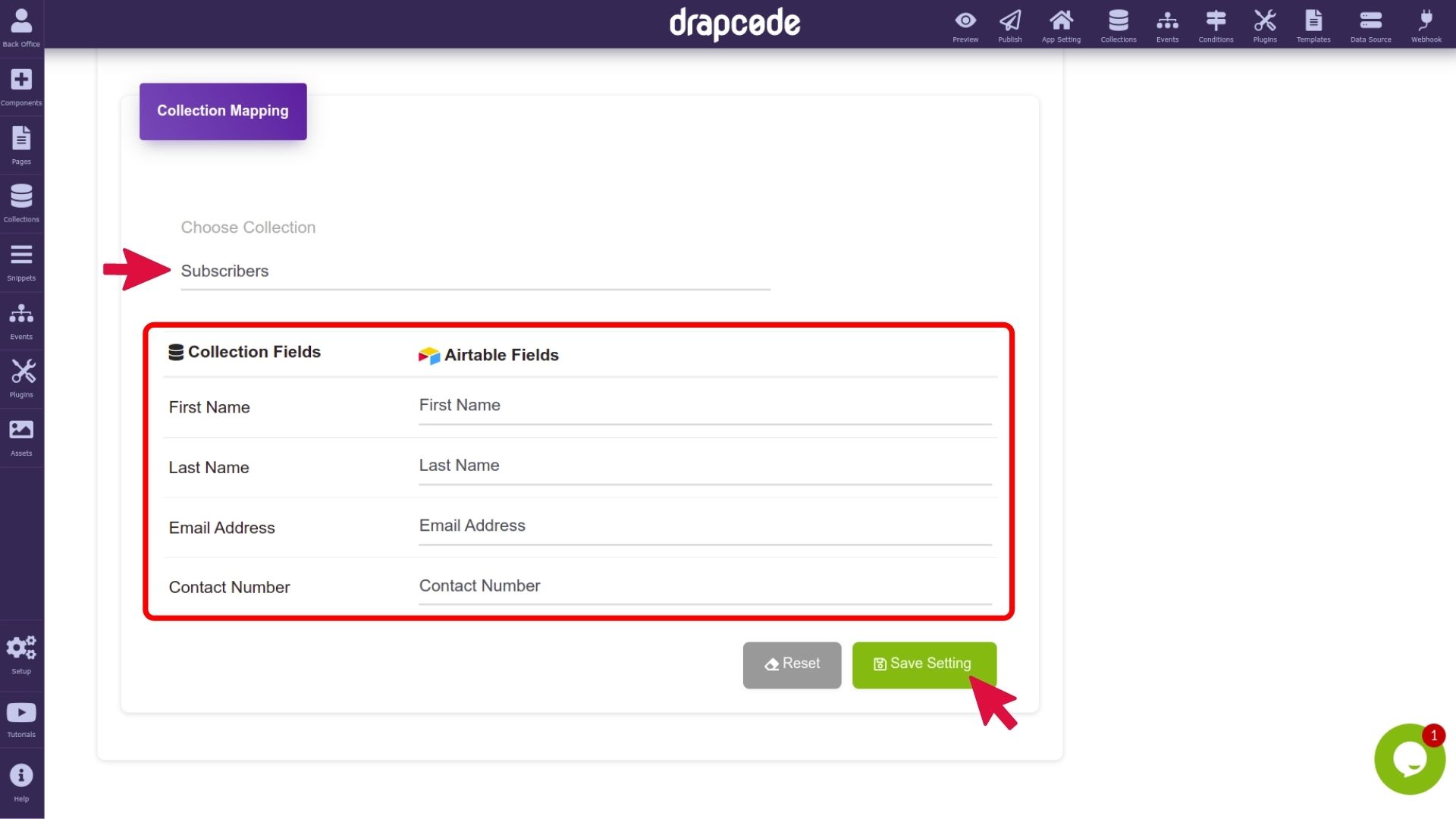

#17: Select the Collection & Start Mapping​

Select the Collection in which you want to transfer the data and start mapping the fields. Once all the fields are mapped, click the “Save Setting” button.

DrapCode Builder Airtable

Click the Refresh Icon​

#18: Transfer Data by Clicking the Refresh Icon​

Now as you click the button, you will be redirected to the Data Source page. Open the Airtable tab and you will see a new entry. Click the refresh icon, so all the data in the Airtable’s spreadsheet could transfer to the collection you chose.

DrapCode Builder Airtable

#19: Open the Collection to Check the Transferred Data​

Now open the collection in which you transferred the data. You will see all data in the Airtable’s spreadsheet is transferred into the collection successfully.

DrapCode Builder Airtable
